Additional information
| Brand | TIMCO |
|---|---|
| Carton Qty Packs | 40 |
| CE Standard Web | BS EN 14592:2008 |
| Colour | Silver |
| Corrosion Rating | 4 – Urban & industrial areas with a moderate salt atmosphere |

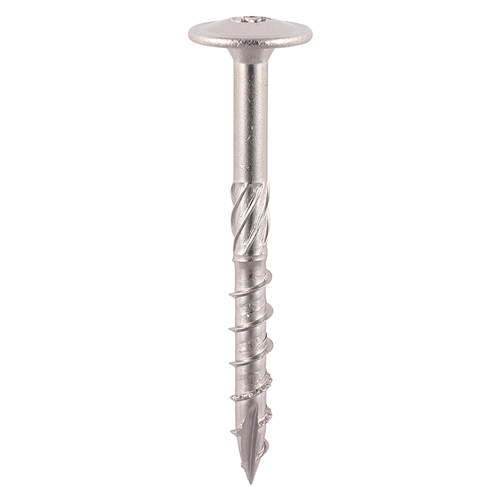

| Description | Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. |
| Diameter mm | 8.0 |
| Driver Bit Size | TX40 |
| Feature 1 | Wafer head countersunk and TX40 recess |
| Feature 2 | Stainless Steel offers superior corrosion resistance, perfect for highly corrosive environments |
| Feature 3 | Helix shank for removing debris and to improve clamping |
| Feature 4 | Single slash point to reduce torque and the risk of timber splitting at low edge distance |
| Feature 5 | 25° sharp point and single lead for a fast start and improved thread acceptance |
| Fixed Washer Dia. mm | 21.00 |
| Head Dia. mm | 20.84 |
| Head Type | Wafer |
| Included Items | TX40 S2 Bit (Qty 1) |
| Inner Thread Dia. mm | 5.60 |
| Length mm | 80 |
| Material | Austenitic Stainless Steel (A2-304) |
| MOQ | 1.00000000 |
| MOQ Increment | 1.00000000 |
| Pack Dimensions L x W x H mm | 58 x 58 x 138 |
| Pack Quantity | 20.00000000 |
| Pack Quantity Unit | Pieces |
| Pack Type | Tube |
| Pack Weight kg | 0.500 |
| Pallet Qty Packs | 960 |
| Point Type | 25° Sharp with Single Slash |
| Product Code | 80INDEXWSST |
| Recess Type | TX Drive |
| Shank Type | Helix |
| Size mm | 8.0 x 80 |
| SKU Barcode | 5056110836270 |
| Substrates | Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar) |
| Thread Coverage | Partially Threaded |
| Thread Dia. mm | 8.0 |
| Thread Length mm | 40 |
| Thread Type | Serrated |
