Additional information
| Approval | BS 5268 |
|---|---|
| Bearing mm | 50 |
| Brand | TIMCO |
| Carton Qty Packs | 100 |
| Corrosion Rating | 4 – Urban & industrial areas with a moderate salt atmosphere |

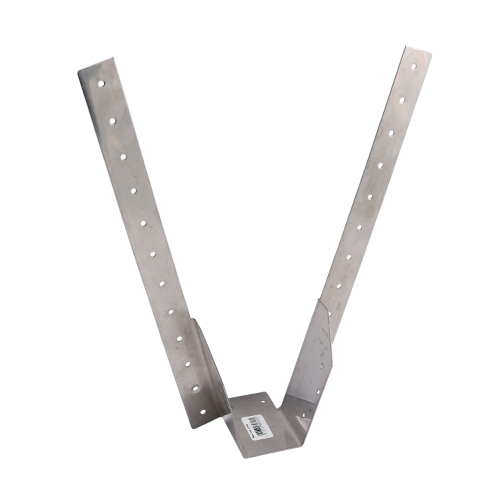

| Description | The TIMCO Timber Hanger range has been designed as simple solution for various timber to timber connections such as joists and stairwell trimming. They have increased leg lengths so that all widths can take up to a 225mm deep joist. |
| Eurocode | 5 |
| Feature 1 | Conforms to Eurocode 5 and service class 3 |
| Joist Size W x H mm | 47 x 100 to 225 |
| Leg Length mm | 277 |
| Material | Austenitic Stainless Steel (A2-304) |
| MOQ | 20.00000000 |
| MOQ Increment | 20.00000000 |
| No. of Nail Holes 3.75mm | 32 |
| Pack Dimensions L x W x H mm | 75 x 47 x 277 |
| Pack Quantity | 1.00000000 |
| Pack Quantity Unit | Each |
| Pack Type | Unit |
| Pack Weight kg | 0.220 |
| Product Code | 47THS |
| Safe Working Load Long Term kN | 6.43 |
| Safe Working Load Medium Term kN | 7.35 |
| Safe Working Load Short Term kN | 7.72 |
| Service Class | 3 |
| SKU Barcode | 5022456321930 |
| Thickness mm | 1.0 |
| Type | Standard |
| Width mm | 47 |
