Additional information
| Application | Framing, Landscaping, Decking, Fencing, Stairs, Roofing, Gazebos, Pergolas, Sleepers |
|---|---|
| Brand | TIMCO |
| Colour | Olive Green |
| Corrosion Rating | 3 – Urban & industrial areas with a low salt atmosphere |

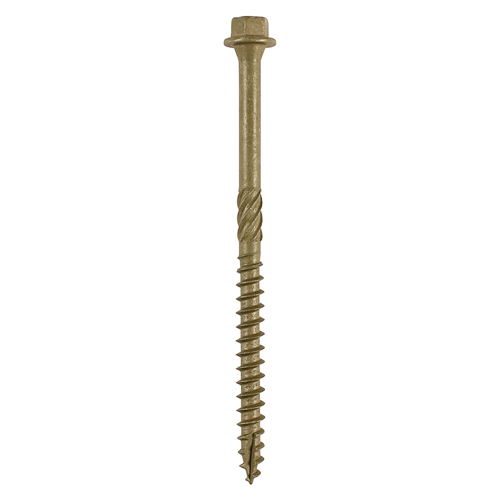

| Description | Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications. |
| Diameter mm | 6.7 |
| Feature 1 | 8mm hex head countersunk with a fixed washer |
| Feature 2 | Long lasting plating withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012 |
| Feature 3 | Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion |
| Feature 4 | Helix shank for removing debris and to improve clamping |
| Feature 5 | 50° deep single thread to provide a secure fixing with high pull-out resistance |
| Feature 6 | Single slash point to reduce torque and the risk of timber splitting at low edge distance |
| Feature 7 | 25° sharp point and single lead for a fast start and improved thread acceptance |
| Finish | Exterior (Green Organic) |
| Fixed Washer Dia. mm | 12.00 |
| Head Dia. mm | 16.08 |
| Head Type | Hex Flange |
| Inner Thread Dia. mm | 4.40 |
| Length mm | 175 |
| Lubrication | Wax |
| Material | Carbon Steel |
| MOQ | 1.00000000 |
| MOQ Increment | 1.00000000 |
| Pack Dimensions L x W x H mm | 237 x 90 x 111 |
| Pack Quantity | 4.00000000 |
| Pack Quantity Unit | Pieces |
| Pack Type | TIMpac |
| Pack Weight kg | 0.122 |
| Point Type | 25° Sharp with Single Slash |
| Product Code | 175INDEXP |
| Recess Type | External Hex |
| Shank Type | Helix |
| Size mm | 6.7 x 175 |
| SKU Barcode | 5056601914906 |
| Socket Size mm | 8 |
| Substrates | Hardwood, Softwood |
| Thread Coverage | Partially Threaded |
| Thread Dia. mm | 6.7 |
| Thread Length mm | 52 |
| Thread Type | 50° Single Deep |
